EKart Store - LocalStack Tutorial Edition

A comprehensive e-commerce platform demonstrating multi-service AWS architectures using LocalStack. This tutorial showcases how to build and test complex cloud-native applications locally before deploying to production.

🎯 Learning Objectives

This tutorial demonstrates:

1. Multi-service AWS integration with LocalStack
2. Event-driven architecture patterns
3. Serverless application development
4. Infrastructure as Code with CloudFormation
5. Modern frontend/backend development practices

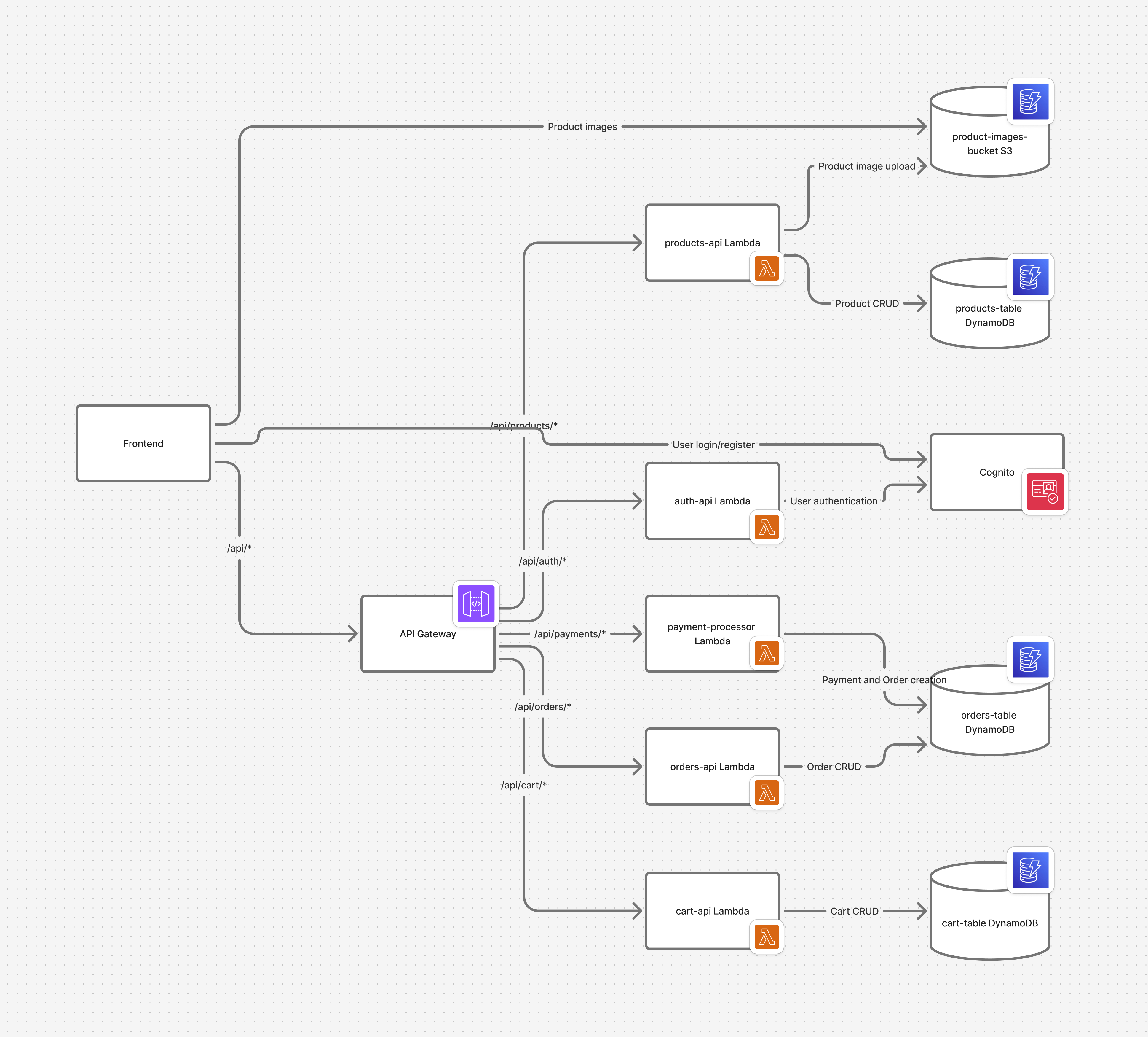

🏗️ Architecture Overview

Core AWS Services (Emulated)

• API Gateway - RESTful API endpoints
• Lambda - Serverless compute functions
• DynamoDB - NoSQL database
• S3 - File storage for product images
• Cognito - Authentication and user management
• CloudFormation - Infrastructure provisioning

Service Interactions

🚀 Quick Start

Prerequisites

• Docker & Docker Compose
• Node.js 18+
• Python 3.9+
• AWS CLI configured for LocalStack

Download repo and locate the project dir

# Clone and navigate to project
git clone https://github.com/Akashbellary/ekart-aws-localstack.git
cd ekart-aws-localstack

To run the project using python scripts

#cleanup the existing lambda functions (optinal)
python scripts\cleanup-serverless.py

#Run this to deploy the dynamodb, s3 backets, IAM Role, API Gateway
python scripts\deploy-infrastructure.py

#Deploy Lambda functions
python scripts\deploy-serverless.py

#Seed the sample products data
python scripts\seed.py

#Test script. Tests involving extensions may not work for free version of localstack
python scripts\test-serverless-apis.py

#If frontend fails to work, run this script. This fixes api config to work with frontend.
python scripts\configure-frontend.py

Run the frontend

cd frontend
pnpm run dev (or) npm install --legacy-peer-deps
npm run dev

Manual Setup Steps

# 1. Install dependencies
make install

# 2. Start LocalStack
docker-compose up -d localstack

# 3. Deploy infrastructure
make deploy-infra

# 4. Seed sample data
make seed-data

# 5. Start services
make start

🔧 Key Components Explained

1. Order Processing Workflow

Problem Identified: Orders weren't appearing in the orders list after successful payment due to incomplete integration between payment processing and order creation.

Solution Implemented:

• Enhanced payment processor Lambda to handle both payment intents and order creation
• Added proper linking between payment intents and orders in DynamoDB
• Updated frontend to collect shipping information and pass it during payment confirmation

Workflow:

1. User adds items to cart
2. Proceeds to checkout with shipping information
3. Frontend calls /api/payments/create-payment-intent to create payment
4. After payment confirmation, frontend calls /api/payments/confirm-payment
5. Payment processor creates order in DynamoDB and links it to payment intent
6. Orders are now visible in the /orders page

2. Data Models

Orders Table (ekart-orders-dev)

• Primary Key: order_id
• GSI: buyer_id and seller_id for efficient querying
• Fields: items, total_amount, status, payment_status, shipping_address

Products Table (ekart-products-dev)

• Primary Key: product_id
• GSI: seller_id and category for filtering
• Fields: title, description, price, stock_quantity, images

3. API Endpoints

Authentication

• POST /api/auth/register - Register new user
• POST /api/auth/login - Login and get JWT token

Products

• GET /api/products - List products
• POST /api/products - Create product (sellers)
• GET /api/products/{id} - Get product details
• PUT /api/products/{id} - Update product (sellers)

Cart

• GET /api/cart - Get user's cart
• POST /api/cart/items - Add item to cart
• PUT /api/cart/items/{id} - Update item quantity
• DELETE /api/cart/items/{id} - Remove item from cart

Payments

• POST /api/payments/create-payment-intent - Create payment intent
• POST /api/payments/confirm-payment - Confirm payment and create order

Orders

• GET /api/orders - List user's orders
• GET /api/orders/{id} - Get order details
• PUT /api/orders/{id}/status - Update order status (sellers)

🛠️ Development Commands

# Show all available commands
make help

# Install all dependencies
make install

# Start all services
make start

# Stop all services
make stop

# Redeploy infrastructure
make deploy-infra

# Seed database with sample data
make seed-data

# Run tests
make test

# Clean up environment
make clean

🐛 Troubleshooting Common Issues

Orders Not Showing After Payment

Cause: Previous implementation didn't link payment confirmation with order creation Fix: Updated payment processor Lambda to create orders when payments are confirmed

LocalStack Services Not Starting

# Check LocalStack health
curl http://localhost:4566/_localstack/health

# Restart LocalStack
make stop && make start

Database Connection Issues

# Check DynamoDB tables
aws --endpoint-url=http://localhost:4566 dynamodb list-tables

# Check table contents
aws --endpoint-url=http://localhost:4566 dynamodb scan --table-name ekart-orders-dev

📊 Monitoring

LocalStack Dashboard

• URL: http://localhost:4566/_localstack/cockpit
• Features: Resource browser, logs, metrics

Service URLs

• Frontend: http://localhost:3000
• Backend API: http://localhost:8000
• API Docs: http://localhost:8000/api/docs
• LocalStack: http://localhost:4566

🤝 Contributing

This project serves as a comprehensive example for the LocalStack community, showcasing:

• Multi-service AWS integration patterns
• Serverless application best practices
• Real-world e-commerce workflows
• Event-driven architecture implementation

Key Features Demonstrated

1. Service Integration: Complex workflows across multiple AWS services
2. Database Operations: DynamoDB with GSI queries and efficient data modeling
3. Authentication: Cognito user pools with JWT validation
4. Infrastructure as Code: CloudFormation deployment automation
5. File Management: S3 integration for product images

📝 License

This project is open source and available under the MIT License.

---

Built with ❤️ for the LocalStack community
