SETC: Security Exploit Telemetry Collection

SETC automates vulnerability exploitation in Docker containers, captures network traffic and system telemetry, and converts logs to standard formats (CIM, ECS, OCSF, CEF, UDM). It produces repeatable, on-demand exploit telemetry for security research, tooling development, and dataset generation.

For the full research background, see the arXiv preprint, the published IEEE CARS 2024 paper, and the doctoral dissertation.

Quickstart

# Clone and install
git clone https://github.com/your-org/setc.git
cd setc
pip install -r requirements.txt

# Build required system containers
cd docker_images/tcpdump && docker build -t tcpdump . && cd ../..
cd docker_images/log_format && docker build -t logformat . && cd ../..
docker pull metasploitframework/metasploit-framework:6.2.33

# Run a single-exploit example
python3 setc/setc.py example_configurations/docker_small.json --cleanup_volume --cleanup_network

How It Works

Config JSON
  |
  v
1. Parse config entries (one per CVE / exploit)
  |
  v
2. Start target container(s) + tcpdump on a private Docker network
  |
  v
3. Launch Metasploit, run exploit, retry until success
  |
  v
4. Capture process tables (pre/post exploit)
  |
  v
5. Zeek parses captured PCAPs into structured logs
  |
  v
6. Convert logs to CIM, ECS, OCSF, CEF, and UDM formats
  |
  v
7. Output to Docker volume (and optionally Splunk, PostgreSQL, or ELK)

Configuration

Each config is a JSON array of exploit entries. SETC supports two target modes:

Single container -- provide a Docker image directly:

[
    {
        "name": "CVE-2018-11776",
        "settings": {
            "description": "Struts2 OGNL injection RCE",
            "target_image": "vulhub/struts2:2.5.25",
            "exploit": "multi/http/struts2_multi_eval_ognl"
        }
    }
]

Docker Compose -- for multi-container targets (uses $VULN_PATH and $SETC_PATH env vars):

[
    {
        "name": "CVE-2014-6271",
        "settings": {
            "description": "Apache CGI shellshock using user agent",
            "yml_file": "$VULN_PATH/bash/CVE-2014-6271/docker-compose.yml",
            "target_name": "setc-web-1",
            "exploit": "multi/http/apache_mod_cgi_bash_env_exec",
            "exploit_options": "set TARGETURI /victim.cgi;"
        }
    }
]

Config fields

Field	Required	Description
name	Yes	CVE or exploit identifier
description	Yes	Human-readable description
exploit	No	Metasploit module path (omit for manual exploit mode)
target_image	One of these	Docker image for single-container targets
yml_file + target_name	One of these	Docker Compose file + target container name
exploit_options	No	Additional MSF console commands (semicolon-separated)
exploit_mode	No	"cli" (default) or "rpc" for Metasploit RPC-based exploitation
exploit_success_pattern	No	Regex pattern to detect success (default: checks for port 4444)
target_delay	No	Seconds to wait after starting the target (default: 0)
exploit_retries	No	Retry count before giving up (default: 4)
exploit_check_delay	No	Seconds between status checks (default: 3)
exploit_check_count	No	Status checks per attempt (default: 7)
ready_delay	No	Seconds between readiness checks (default: 5)
ready_retries	No	Readiness checks before giving up (default: 5)

See setc_config_schema.json for the full JSON Schema. Validate configs with:

check-jsonschema --schemafile setc_config_schema.json example_configurations/docker_small.json

Output

SETC writes all telemetry to a Docker volume (set_logs by default). Logs are converted to five standard formats: Splunk CIM, Elastic Common Schema (ECS), OCSF, ArcSight CEF, and Google Chronicle UDM. Each CVE gets its own directory:

set_logs/
  CVE-2018-11776/
    pcap/                     # Raw packet capture
    zeek/                     # Zeek-parsed logs (conn.log, http.log, ...)
    cim/
      cim_http.log            # Splunk CIM web format
      cim_network.log         # Splunk CIM network format
      cim_process_*.log       # CIM endpoint process logs
    ecs/
      ecs_http.log            # Elastic Common Schema
      ecs_network.log
      ecs_process_*.log
    ocsf/
      ocsf_http.log           # OCSF 1.4.0 HTTP Activity
      ocsf_network.log        # OCSF 1.4.0 Network Activity
      ocsf_process_*.log      # OCSF Process Query
    cef/
      cef_http.log            # ArcSight CEF HTTP events
      cef_network.log         # ArcSight CEF network events
      cef_process_*.log       # CEF process events
    udm/
      udm_http.log            # Google Chronicle UDM HTTP
      udm_network.log         # Google Chronicle UDM network
      udm_process_*.log       # UDM process events

CLI Reference

usage: setc [-h] [-v] [-p PASSWORD] [--volume VOLUME] [--network NETWORK]
            [--msf MSF] [--prefix PREFIX] [--splunk] [--postgres] [--elk]
            [--no-zeek] [--cleanup_network] [--cleanup_volume]
            [--cleanup_splunk] [--cleanup_postgres] [--cleanup_elk]
            config

Flag	Description
config	Path to a SETC configuration JSON file
-v, --verbose	Enable debug logging
-p, --password	SIEM password (default: password1234)
--volume	Docker volume name (default: set_logs)
--network	Docker network name (default: set_framework_net)
--msf	Override the Metasploit Docker image
--prefix	Session prefix for container names (auto-generated if omitted)
--splunk	Launch a Splunk instance and ingest logs
--postgres	Launch a PostgreSQL instance and ingest logs
--elk	Launch Elasticsearch + Kibana and ingest logs (Kibana UI at http://localhost:5601)
--no-zeek	Disable Zeek PCAP parsing
--cleanup_network	Delete the Docker network before running
--cleanup_volume	Delete the log volume before running
--cleanup_splunk	Remove Splunk container after completion
--cleanup_postgres	Remove PostgreSQL container after completion
--cleanup_elk	Remove Elasticsearch and Kibana containers after completion

RPC exploit mode

By default SETC drives Metasploit via msfconsole -x (CLI mode). Setting "exploit_mode": "rpc" in a config entry switches to the MSGRPC API via pymetasploit3, which provides:

• Structured exploit execution — module.execute() returns a job ID
• Reliable success detection — checks client.sessions.list for actual Meterpreter/shell sessions instead of grepping netstat
• Job tracking — active jobs are visible via client.jobs.list

[
    {
        "name": "CVE-2018-11776",
        "settings": {
            "description": "Struts2 OGNL injection RCE",
            "target_image": "vulhub/struts2:2.5.25",
            "exploit": "multi/http/struts2_multi_eval_ognl",
            "exploit_mode": "rpc"
        }
    }
]

RPC mode uses the same Metasploit Docker image — it starts msfrpcd instead of msfconsole. The pymetasploit3 dependency is installed via pip install -r requirements.txt.

Manual exploit mode

When exploit is omitted (or set to ""), SETC starts the target and tcpdump capture, then pauses and waits for you to manually exploit the target from a separate terminal. Press Enter when done and SETC proceeds with cleanup, PCAP parsing, and log conversion as usual.

This is useful for exploits not in Metasploit, custom attack chains, or interactive research.

[
    {
        "name": "CVE-2024-XXXXX",
        "settings": {
            "description": "Manual exploitation of custom vuln",
            "target_image": "vuln-app:latest"
        }
    }
]

# SETC will start the target, then prompt you:
#   "Press Enter when finished exploiting to continue..."
python3 setc/setc.py manual_config.json --cleanup_volume --cleanup_network

Example runs

# Single-container config
python3 setc/setc.py example_configurations/docker_small.json --cleanup_volume

# Docker Compose targets (set env vars first)
export VULN_PATH=/path/to/vulhub
export SETC_PATH=/path/to/setc
python3 setc/setc.py example_configurations/compose_small.json --cleanup_volume --cleanup_network

# With Splunk integration
python3 setc/setc.py example_configurations/docker_large.json --splunk --cleanup_volume

# With PostgreSQL backend
python3 setc/setc.py example_configurations/docker_small.json --postgres --cleanup_volume --cleanup_postgres

# With ELK stack (Elasticsearch + Kibana)
python3 setc/setc.py example_configurations/docker_small.json --elk --cleanup_volume --cleanup_elk

SIEM Backends

SETC can optionally ingest logs into a SIEM for querying and visualization. All backends are launched as Docker containers alongside the exploit pipeline and share the same --password flag (default: password1234).

Backend	Flag	Access	Cleanup
Splunk	--splunk	http://localhost:8000 (user: admin)	--cleanup_splunk
PostgreSQL	--postgres	localhost:5432 (user: setc, db: setc)	--cleanup_postgres
ELK	--elk	Kibana: http://localhost:5601, ES: http://localhost:9200 (user: elastic)	--cleanup_elk

Backends are left running after SETC completes by default so you can query the data. Use the corresponding --cleanup_* flag to tear them down automatically.

Setup

Prerequisites

• Python 3.10+
• Docker (native or Docker Desktop)

System containers

These three containers are required for SETC to run:

# Network monitoring (tcpdump sidecar)
cd docker_images/tcpdump && docker build -t tcpdump .

# Log format conversion
cd docker_images/log_format && docker build -t logformat .

# Metasploit (pinned for Docker hostname resolution compatibility)
docker pull metasploitframework/metasploit-framework:6.2.33

Sample target images

The example configs reference these vulnerable images. Build or pull whichever you need:

# Metasploitable2 (used by docker_large.json)
cd docker_images/metasploitable2 && docker build -t metasploitable2 .

# Apache HTTPD CVEs (used by docker_large.json)
cd docker_images/httpd/CVE-2021-41773 && docker build -t cve-2021-41773 .
cd docker_images/httpd/CVE-2021-42013 && docker build -t cve-2021-42013 .

# Vulhub images are pulled automatically by Docker

For Docker Compose configs, clone vulhub and set VULN_PATH to point to it.

Development

pip install -r requirements-dev.txt

# Run unit tests (no Docker required)
python -m pytest tests/test_unit.py -v

# Run e2e tests (requires Docker and built images)
python -m pytest tests/test_e2e.py -v

Unit tests run automatically via GitHub Actions on pushes to main/dev and on pull requests.

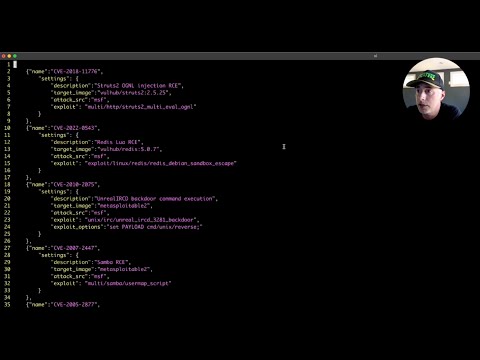

Demo

Note: This video shows an earlier version of SETC. The core workflow is the same but the CLI options have changed.

Citation

If you use SETC in your research, please cite:

IEEE CARS 2024 paper:

@INPROCEEDINGS{10778761,
  author={Holeman, Ryan and Hastings, John D. and Mathew Vaidyan, Varghese},
  booktitle={2024 Cyber Awareness and Research Symposium (CARS)},
  title={SETC: A Vulnerability Telemetry Collection Framework},
  year={2024},
  pages={1-7},
  doi={10.1109/CARS61786.2024.10778761}
}

Dissertation:

@phdthesis{holeman2024setc,
  author={Holeman, Ryan},
  title={SETC: A Vulnerability Telemetry Collection Framework},
  school={Dakota State University},
  year={2024},
  url={https://scholar.dsu.edu/theses/501/}
}
